Sunday, March 3, 2013

Cirrus Retrofit Update


Cirrus Fuel Level retrofits are now occurring throughout the world.

Wells Aircraft in Hutchinson Kansas was the latest

Don, Scott and the rest of the team at Wells did an excellent job with the retrofit and took these pictures to show how well the system integrates to the Cirrus Aircraft

Wells Aircraft Website

 This illustration shows the new CIES Fuel level
sensor on the Left and the replaced sensor on the Right.   Notice the increased area for fuel sealing on the new design, the smaller float and sealed Circular connector with gold plated pins.  The quality improvement is evident.

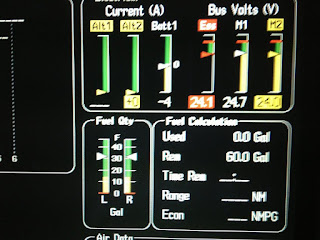

 Here is a close up of the Engine page on the MFD in the Cirrus Aircraft.  This gives you  the view of how the fuel level is depicted on the screen immediately adjacent to the Fuel Total

This illustration shows you confirmation of the fuel level remaining in the tanks as well as the fuel burned during the flight.  Given that you inputted the initial amount correctly they should match throughout the flight.

A closer view of the MFD depiction
This shows how well the new gauge integrates to the cockpit center console.  Notice that it gives you the same information as the Perspective MFD and also gives a numeric value for fuel.   If you exceed the manufacturers POH fuel imbalance the more full tank will turn yellow and flash to indicate the tank you should now select.  Simple

Another view of the Cockpit installation on the aircraft.  Notice even how well we matched the black anodizing on the instrument.   Attention to detail does not end at accurate representation of fuel level.
 Here we show the map view on the MFD with fuel level on the left side of the Perspective Screen
 A closer view of the fuel level displayed on the aircraft
